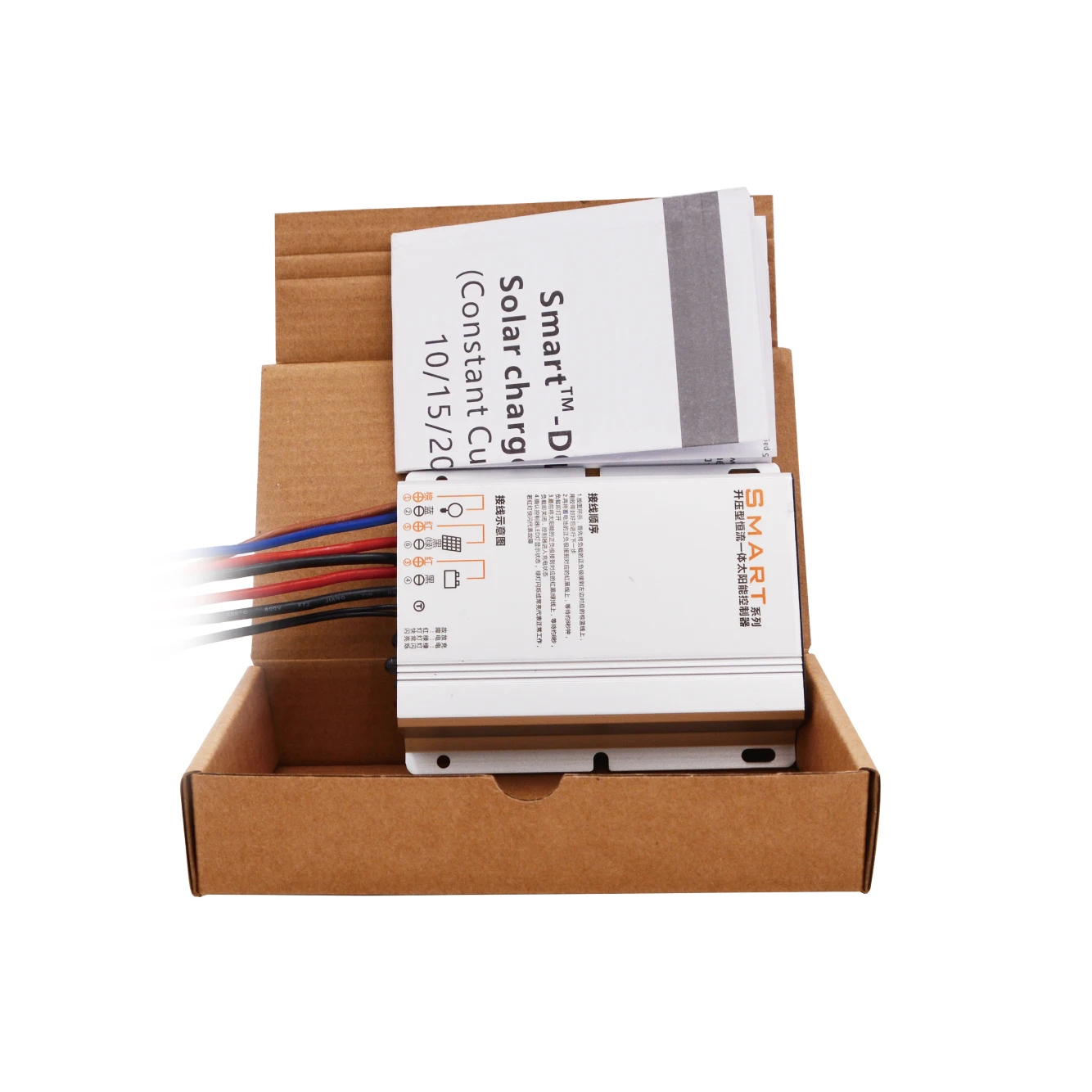

12v 24v 40W 60W 10a lifepo4 solar street light controller led controller
$7.5
/piece
price excl.VAT
Negotiable
- Minimal order
- 100 pieces
Message Phone call
Product Specifications
--
Product Description
Overview
Quick Details
Place of Origin:Shandong, China
Brand Name:Lumiax
Model Number:SMR1006-DCN5XLI
Type:PWM
Application:Charger Controller, Lighting Controller, Solar streetlight charge controller
Work Time (h):12h,dusk to down
Max PV Power:60w
Certificate:CE,ISO9001
Warranty:2 Years
Battery type:Lithium ,LifePO4 battery
Full protection:Yes
Casing protection:IP67
OEM service:accepted
Charging way:PWM
Built-in driver function:Yes
Lighting hours:5 stages (time)
Product Certification
CE Certified. Valid from 2018-04-25 until 2049-12-31
Supply Ability
Supply Ability: 10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details33*29*19cm /carton
40pcs/casrton(10.1kg)Portqingdao Picture Example:
Lead Time :
| Quantity(Pieces) | 1 - 100 | 101 - 200 | >200 |
| Est. Time(days) | 7 | 14 | To be negotiated |
Online Customization
Product Paramenters
Type | SMR1006-DCN5XLi |
Max charging current | 10A |
System voltage | 12V/24V Auto |
Output power | 3~40W/3~60W |
Output voltage | 15~55V/30~55V |
Output current | 0.15~2.0A(Programmable) |
Current precision | ±2% |
Max LED driver efficiency | 95% |
Dimming | 0~100%(Programmable) |
Voltage of start dimming | 11.8~12.5V/23.6~25.0V(Programmable) |
Dimming percentage | 1~20%(Programmable) |
Fast voltage | <14.5/29.0V (25℃) |
Boost voltage | 14.5/29.0V (25℃) |
Equal voltage | 14.8/29.6V (25℃)（Liquid） |
Float voltage | 13.7/27.4V (25℃) |
Low voltage disconnect | 10.8~11.8V/21.6~23.6V(Programmable) |
Low voltage reconnect | 11.4~12.8V/22.8~25.6V(Programmable) |
Over voltage protection | 15.5/31.0V |
Lighting hours | 5 stages(Programmable) |
Day/Night threshold | 3.0~8.0V/6.0~16.0V(Programmable) |
Day/Night delay time | 0~30 min(Programmable) |
Battery type | Lithium |
Max solar voltage | 55V |
Max battery voltage | 40V |
Dimensions/Weight | 85*72*22.6mm/255g |
Self consumption | 10mA |
Ambient temperature | -35~+60℃ |
Protection degree | IP67 |
Max altitude | 4000m |
