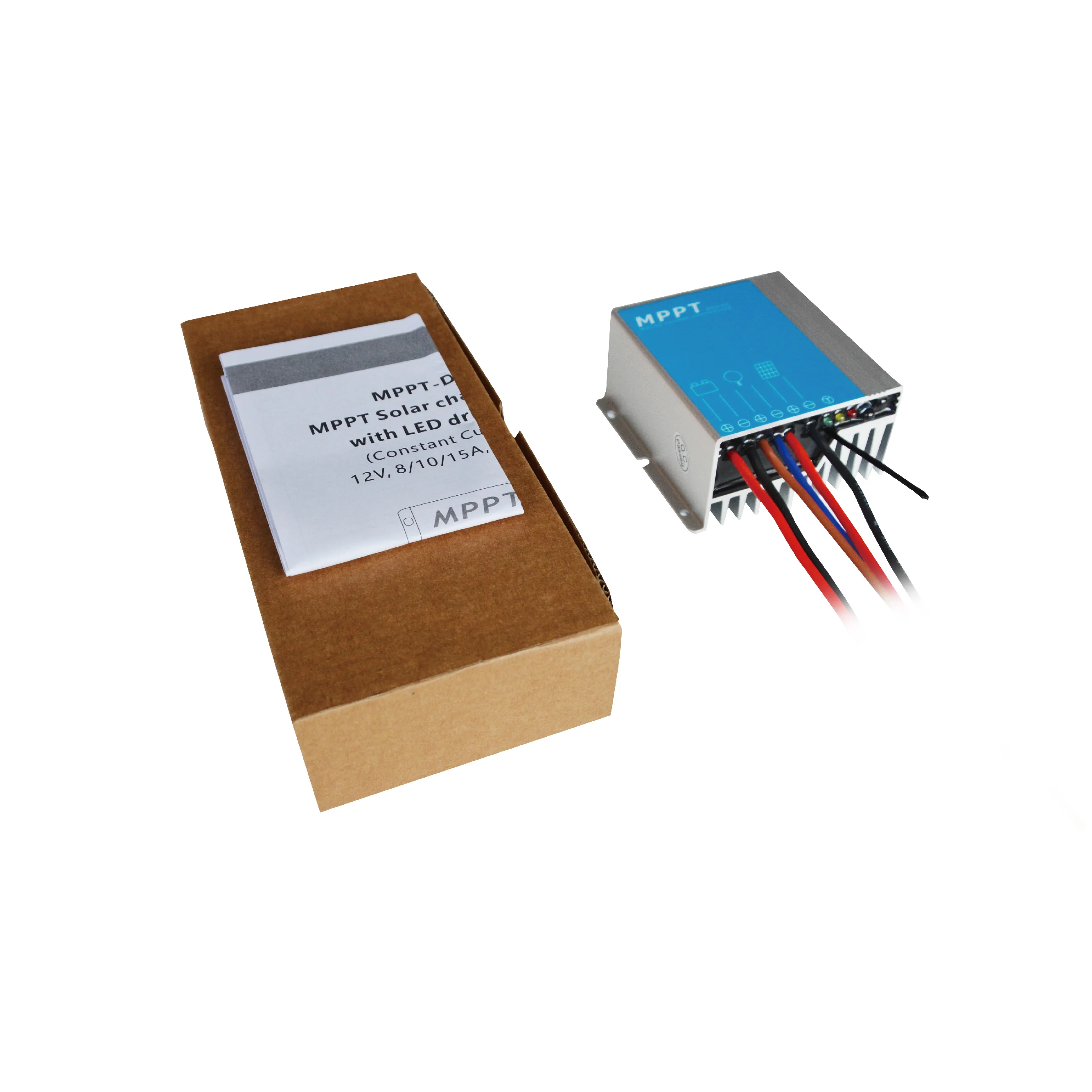

Lumiax 15A 12V waterproof mppt solar street light controller for lighting lithium battery
- Minimal order
- 100 pieces
Message Phone call
Product Specifications
--
Product Description
Overview
Quick Details
Place of Origin:Shandong, China
Brand Name:Lumiax
Model Number:MPPT1550-DC/Li
Type:MPPT
Application:Charger Controller, Lighting Controller, Voltage Controller, Solar System Controller
Work Time (h):24h
Max PV Power:200W
Max PV Voltage:35V
Certificate:CE,RoHS,ISO9001
Warranty:3 Years
Battery type:Liquid,AGM,Gel
Display:LED Display
Dimensions(mm):85.8*81*42.5mm
MPPT efficiency:99.9%
Conversion Efficiency:97.50%
Self-consumption:6mA
OEM:Accepted
Net weight:400g
Waterproof level:IP67
Product Certification
CE Certified. Valid from 2018-04-25 until 2049-12-31
Packaging & Delivery
Selling Units:Single itemSingle package size: 10X10X5 cm Single gross weight: 0.600 kg Picture Example:

Lead Time :
| Quantity(Pieces) | 1 - 100 | 101 - 300 | >300 |
| Est. Time(days) | 8 | 14 | To be negotiated |
Online Customization

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:373px;height:272px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:-89px;margin-left:-43px;width:496px;height:496px}#detail_decorate_root .magic-3{overflow:hidden;width:373px;height:272px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-4{margin-top:-56px;margin-left:-28px;width:391px;height:391px}#detail_decorate_root .magic-5{border-bottom-style:solid;border-bottom-color:#bbb;font-family:Roboto;font-size:24px;color:#000;background-color:#bbb;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-6{width:750px;border-collapse:collapse}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:170px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:28px;padding:5px 10px;width:230px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-9{text-align:center}#detail_decorate_root .magic-10{display:none}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:279px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:133px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:531px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:99px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:530px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:125px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-20{overflow:hidden;width:247.33333333333334px;height:340.82533333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:247px;height:340px}#detail_decorate_root .magic-22{overflow:hidden;width:247.33333333333334px;height:340.45883940620786px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:247px;height:341px}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:247px;height:351px}#detail_decorate_root .magic-25{overflow:hidden;width:247.33333333333334px;height:349.7766776677669px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:247px;height:349px}#detail_decorate_root .magic-27{overflow:hidden;width:247.33333333333334px;height:349.4709851551957px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:249px;height:349px}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:254px;height:349px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:349.8971028971029px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:373.00000000000006px;height:349.8971028971029px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:349px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:373.00000000000006px;height:349.5244755244756px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-36{width:320px}#detail_decorate_root .magic-37{overflow:hidden;width:320px;height:309px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:320px;height:320px}#detail_decorate_root .magic-39{overflow:hidden;width:320px;height:309px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:37px;margin-left:-30px;width:354px;height:245px}#detail_decorate_root .magic-41{overflow:hidden;width:426px;height:622.8070175438596px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:426px;height:622.8070175438596px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:520px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:-109px;margin-left:-119px;width:1052px;height:675px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:-5px;margin-left:-23px;width:787px;height:315px}Secification/Parameters
MPPT1550-DC | MPPT1550-DCLi | ||||||
Ampere | 15A | ||||||
System Voltage | 12V | ||||||
Mppt Charging Voltage | < 14.5 @25℃ | < charging voltage target | |||||
Boost Voltage | 14.5 @25℃ | -- | |||||
Equal Voltage | 14.8 @25℃(Liquid, AGM) | -- | |||||
Float Voltage | 13.7 @25℃ | -- | |||||
Charging voltage target | -- | 10.0~17.0V(Programmable) | |||||
Charging voltage recovery | -- | 9.2~16.8V(Programmable) | |||||
Low voltage disconnect | -- | 9.0~15.0V (Programmable) | |||||
Low voltage reconnect | -- | 9.6~16.0V(Programmable) | |||||
Battery Type | Liquid,AGM,GEL | Lithium | |||||
Max PV input Power | 200W | 180W(3s)~220W(4s) | Eg:150W(3s)~400W(8s) | ||||
Max PV input Voltage | 35V | ||||||
Dusk/Dawn detect volt | 3.0~8.0V (Programmable) | ||||||
Output Power | 1~60W | ||||||
Output Voltage | (Battery voltage+2V)~35V | ||||||
Output Current | 0.15A~3A | ||||||
Max Tracking Efficiency | >99.9% | ||||||
Max Charge Conversion | 97.5% | ||||||
Max LED driver efficiency | 96% | ||||||
Protection degree | IP67 | ||||||
Certifications
Global Exhibitions
Our Factory
Customer Feedback
Supply Ability
--

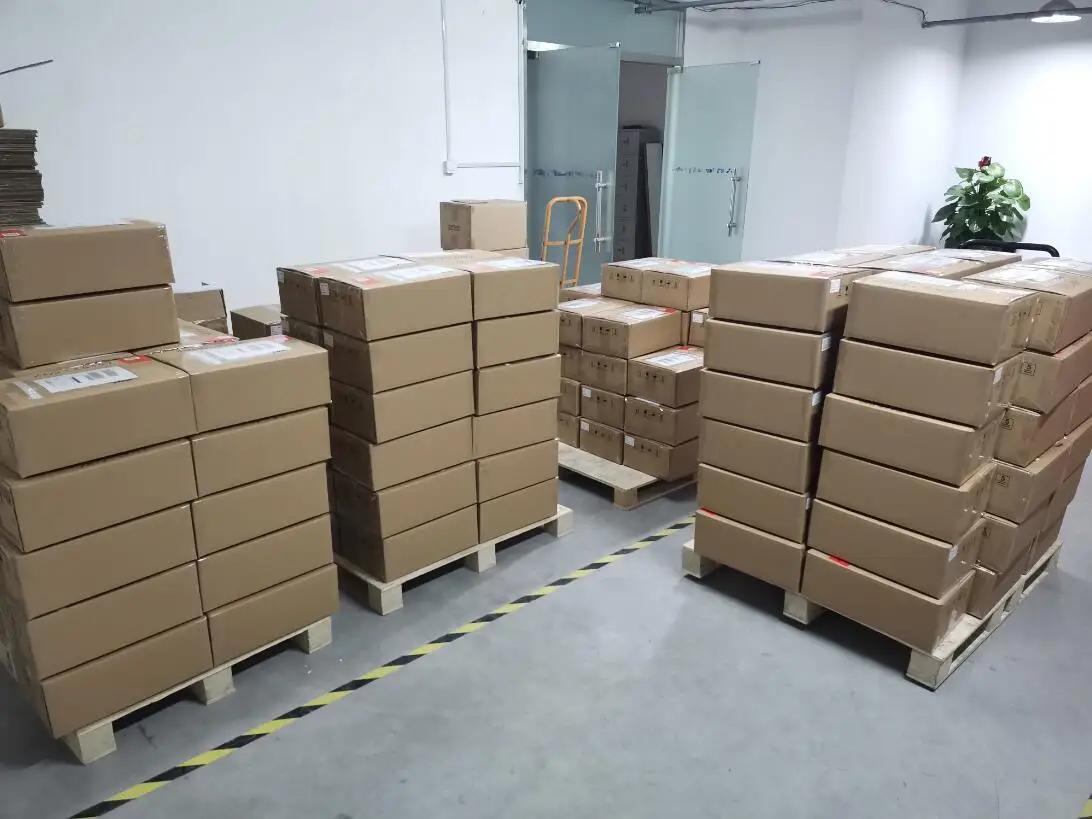

Packaging and Shipping
