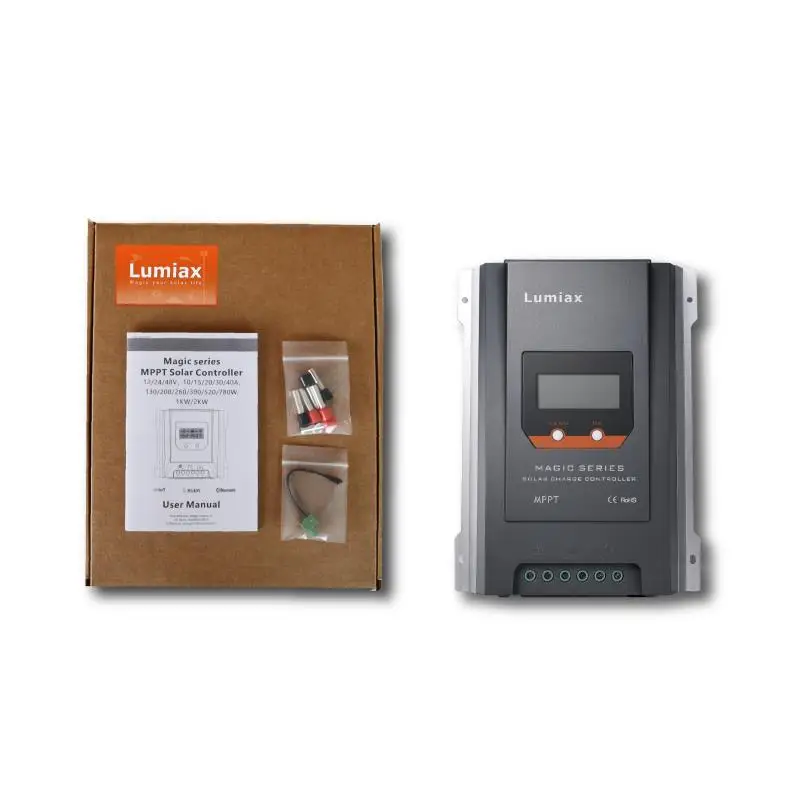

Solar regulator 12v 24v 30a charge controller mppt for camping with bluetooth
$55.5
/piece
price excl.VAT
Negotiable
- Minimal order
- 100 pieces
Message Phone call
Product Specifications
--
Product Description
Overview
Quick Details
Place of Origin:Qingdao,China
Brand Name:Lumiax
Model Number:MT3010-E/MT3010-E-BT
Type:MPPT
Application:Charger Controller, Voltage Controller, Solar System Controller
Work Time (h):24h
Max PV Power:390/780W
Max PV Voltage:100V
Certificate:CE RoHS ISO9001,14001
Warranty:2 YEARS
Charge mode:MPPT Maximum Power Point Tracking
Display:LCD Screen
Battery type:Liquid,GEL,AGM,Lithium
Charge way:Four Stage Charging
Dimensions(mm):189*255*69mm
Weight:2000g
Communication:RS485(RJ11 Interface
Protection:IP32
MPPT efficiency:99.9%
Conversion Efficiency:98%
Packaging & Delivery
Selling Units:Single itemSingle package size: 20X27X7 cm Single gross weight: 1.500 kgPackage Type:Single package size:200*270*70mm Single gross weight:1.5kg Package Type:4pcs/Carton 500*310*290mm G.W:9kg(including user manual) Picture Example:
Lead Time :
| Quantity(Pieces) | 1 - 100 | 101 - 300 | >300 |
| Est. Time(days) | 7 | 14 | To be negotiated |
Online Customization
Products Description
Type | MT3010-E | MT3010-E-BT | |
System Voltage | 12V/24V automatical recognization | ||
Max Charging Current | 30A | 30A with BT | |
Boost Voltage | 14.5/29.0V @25℃ | ||
Equal voltage | 14.8/29.6V @25℃（Liquid） | ||
Float Voltage | 13.7/27.4V @25℃ | ||
Low Volt. Disconnect | 10.8~11.8V/21.6~23.6V,SOC1~5 | ||
Reconnect Voltage | 11.6~12.8V/23.2~25.6V | ||
Overcharge Protect | 15.5/31.0V | ||
Battery Type | Liquid, Gel, AGM,Lithium | ||
Max volt on PV terminal | 100V | ||
Max input power | 380W/790W | ||
Work mode | Standard, D2D, Street lamp, User-defined mode | ||
Max tracking efficiency | >99.9% | ||
Max charge conversion | 98.00% | ||
Dimensions(mm) | 189*255*69 | ||
Weight | 1800g | ||
Protection degree | IP32 | ||
Max Altitude | 4000m | ||
Energy saving
1、MPPT technology tracking efficiency >99%2、Full digital technology,high charge conversion efficiency up to 98%
3、It has the function of real-time power statistics and recording
4、With current-limiting charging mode
5、Four stages charge way:MPPT, boost,equalization,float
6、Multiple load control modes:Standard,Dusk to Dawn,Timer and User-defined mode
The protection function of the battery
1、Built-in overtemperature protection mechanism2、Overcharge and release protection
3、Temperature compensation protection
4、Recovery point setting and adjustment
5、LCD displays the running data and working status of the device dynamically
6、System alarm and remote monitoring
